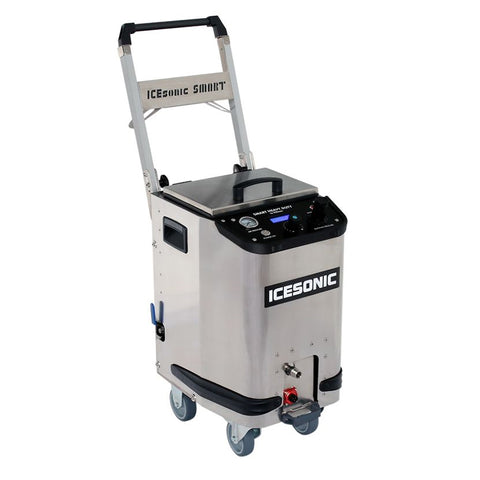

ICEsonic SMART HD (Heavy Duty)

Powerful cleaning with compressed air of 300 l / min. The SMART HD dry ice cleaning machine is made of stainless steel construction with quality components for long-lasting operation and applications in a variety of industries. They are mobile for easy transport and can withstand hostile working environments.

TECHNOLOGY

• Powerful Single Hose Action
• Uses Dry Ice Pellet Size From 1/16“ to 1/8” (1.5mm To 3mm)
• Low Air Consumption (varies by nozzle size) from 10 cfm (at 30 Psi) 300l/Min (at 2 bar)

CONSTRUCTION

• All Stainles Steel Construction
• Heat Resistant Wheels
• Heavy Duty Blasting Hose (Fire Protection Available on Request)
• Industrial, VFD Controlled, El. Motor
• MIL Spec. Electrical Connectors
• Quick Coupling ½“ Air Inlet
• Stainless Housing Lifts For Easy Maintenance
• Foldable Handle

OPERATION

• Variable Dry Ice Feed with LED Display – up to 155lbs/H (70kg/H)
• Variable Blasting Pressure Easily Adjusted on a Control Pannel
• Built-in 40 Microns Filter
• Blasting Hose Management System
• Blasting Pressure Gauge, Power and Blasting Lights
• Vibrator Ensures Operation Without Dry Ice Hopper Clogging
• Air Feed Shutoff Valve

SPECIFIATIONS

• Dry Ice Consumption 0 – 155lbs/h (0-70 kg/h)
• Minimum Air Supply: 10 cfm (0.3m³/min)
• Minimum Air Pressure: 30 psi (2 bar)
• Maximum Air Supply: 100 cfm (2.8 m³/min)
• Maximum Air Pressure: 230 psi (1600 kPa/16 bar)
• Insulated Dry Ice Hopper Holds up to 22lbs (10 kg)

SIZE

• Blaster: 14x22x28” (370X560X730mm)
• Blaster With Raised Handle: 14x25x41” (370x650x1045mm)

WEIGHTS

• Machine Only: 120 lbs (55 kg)
• Dry Ice Blasting Unit
• 16 ft. (5 m) Blasting Hose
• Applicator
• 0.25” (6.5mm) Medium Flow Round Nozzle
• 4.5mm low flow nozzle
• 350mm 90 deg extension
• 5.5mm nozzle tip (short) for extension
• 25mm flat nozzle

SM.HD.05	ML.SM65	SM.G.200	Heavy Duty rear wheels (OPTIONAL)
