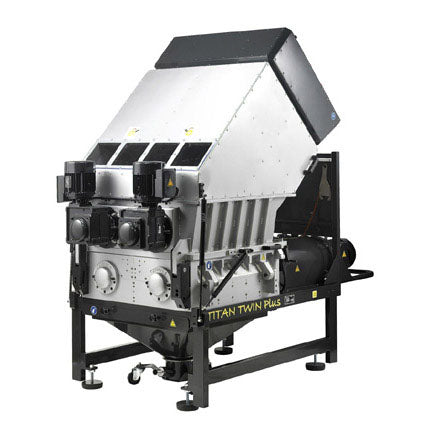

TITAN TWIN Plus
The TITAN Plus granulators benefit from MO-DI-TEC’s slow speed technology and ability to recycle larger plastic pieces such as automotive components.
The TITAN Plus granulators are more particularly adapted for recycling new material with fibreglass, mineral additive etc…
The Masher system is available on the TITAN Plus range as an option and is include as standard on the TITAN TWIN Plus.
The last innovation patented of MO-DI-TEC , IMD system is also available as an option on the TITAN Plus range.
Technical data
| TITAN Plus / TITAN TWIN Plus | TITAN PLUS 5 | TITAN TWIN PLUS 10 |
| TRANSMISSION | By flexible coupling | |
| Motorpower (kW) | 5,5 kW | 2x5,5kW |
| Speed (tr/min) | 25 | |
| Cutting chamber (mm) | 746x400 | 746x840 |
| Number of cutters | 5 | 10 |
| Cutter diameter (mm) | 320 | |
| Number of rollers with teeth | 6 | 12 |
| OVERALL DIMENSIONS (mm) | ||
| Standard / Option 5,5 kW : length | 1840 / 2055 | |
| width | 620 | |
| height | 1778 | |
| With MASHER system (mm) | ||
| with Masher / option 5,5 kW : length | 2019 / 2235 | 2019 / 2235 |
| width | 620 | 1080 |
| height | 2090 | 2171 |
| Maximum theorical output* (kg/h) | 60 | 130 |
| WEIGHT (kg) | ||
| Standard / with Masher | 1000 / 1200 | - / 2300 |
| * Important variations according to material, granulometry and way of feeding. | ||
